Lifecube™ MIX シングルユースミキシングバッグ
Cobetter Lifecubeシングルユースミキシングバッグは、洗浄不要、マルチ仕様、滅菌済み、使いやすくフレキシブルという利点があり、多層共重合フィルムを採用しているため、物理的・化学的特性が良好で、ガス透過性が非常に低く、研究開発から生産スケールまで、バイオ医薬品の液液混合や固液混合プロセスに適しています。
お見積りのお問い合わせ
概要
特徴
- 磁気吸引/磁気浮上攪拌、一体型/分割式、他社製バッグにも使用可能；
- 袋の取り付けが簡単で、均一な混合が可能；
- 25～45kGyのガンマ線照射により滅菌された二重滅菌パック；
- ほとんどの液体ディスペンス用途に対応する多様なサイズ；
- 様々な容器サイズに柔軟に対応、袋のサイズをカスタマイズ；
- チューブ、フィッティング、フィルターはミキシングバッグ上でカスタマイズ可能；
- プロセスのオンラインモニタリングのニーズに合わせて、幅広いセンサーをカスタマイズ；
- 監査証跡と自動管理が可能なハードウェアのサポート。
アプリケーション
- バッファーと培地の調製
- 中間製品の準備
- バッチミキシング
製品性能

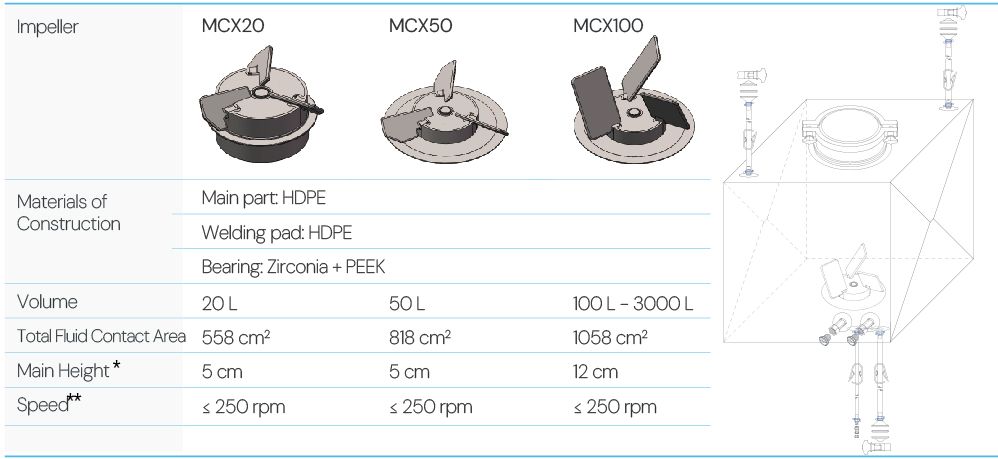

MIX Single-use Mixing Bags —— Standard Options

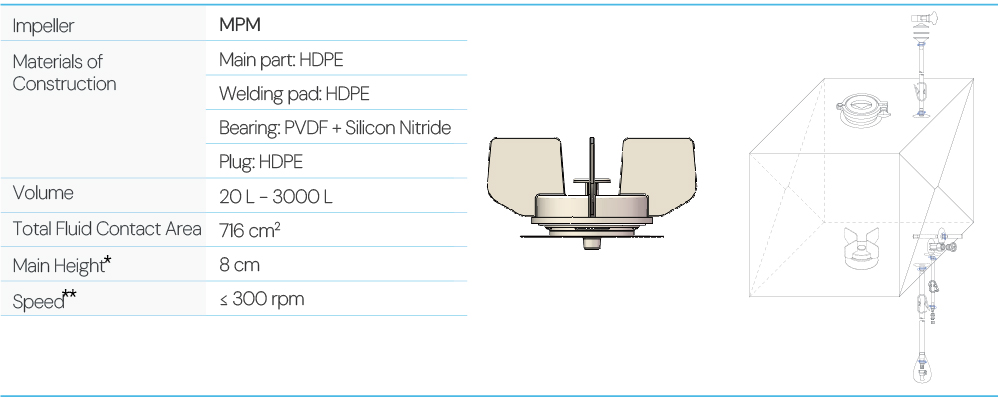

Lifecube MP Single-use Mixing Bags

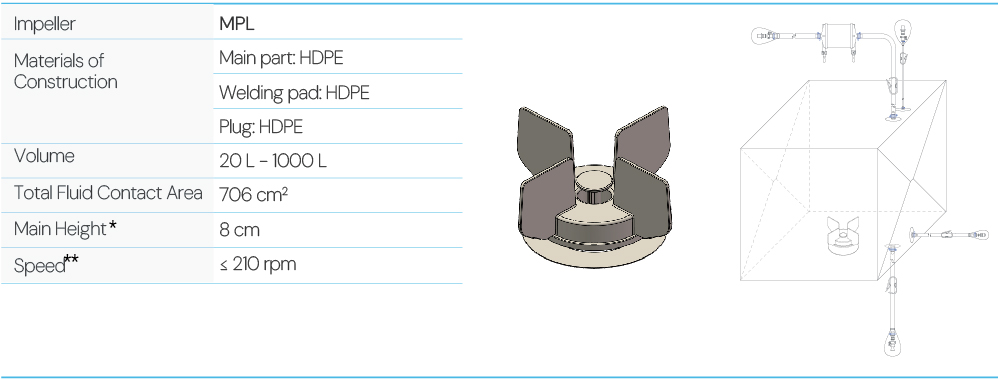

Lifecube ML Single-use Mixing Bags
Lifecube MG Single-use Mixing Bags

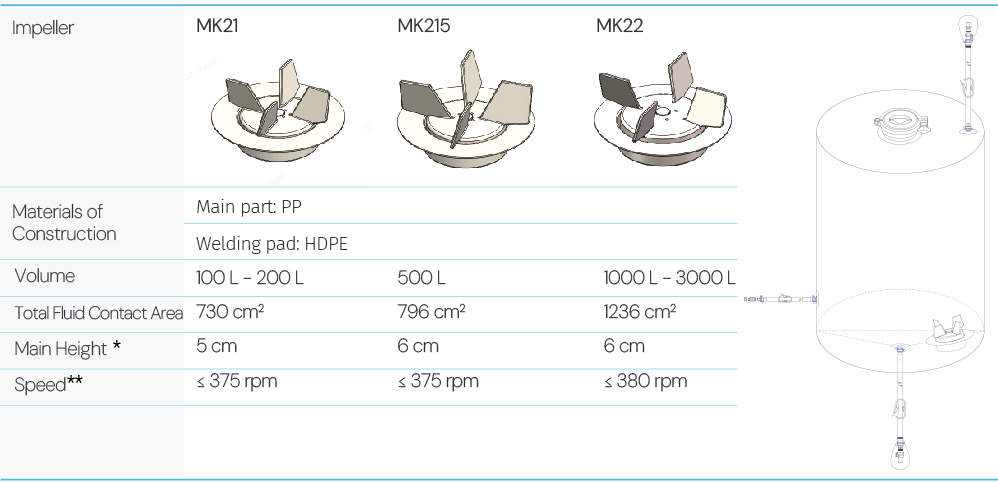

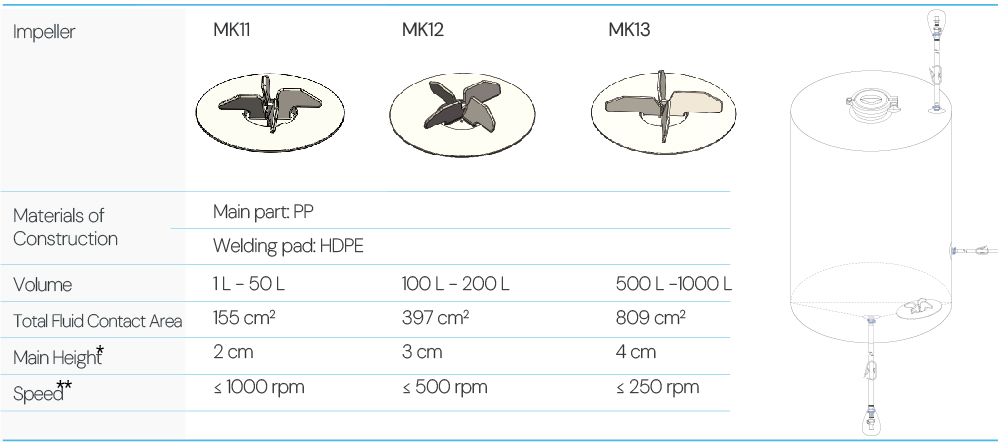

Lifecube MK Single-use Mixing Bags
Lifecube MKP Single-use Mixing Bags

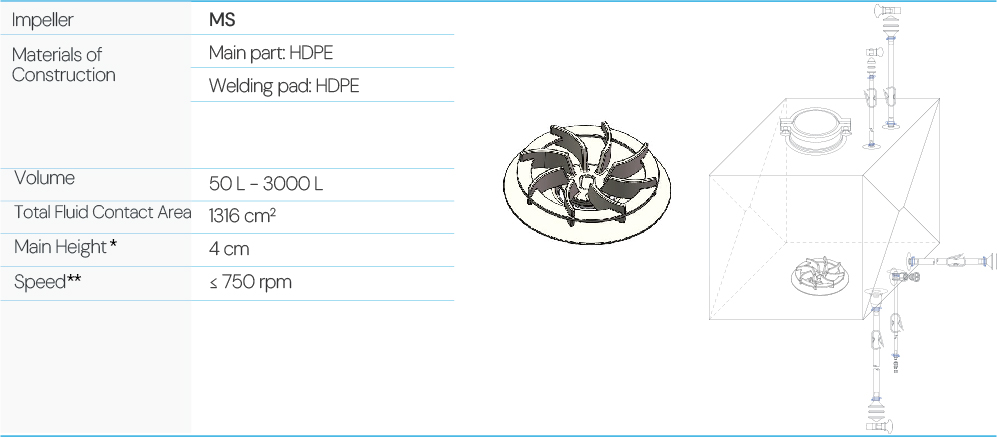

Lifecube MS Single-use Mixing Bags
* Height from the welding plate to the top of the impeller;
** For reference only. The mixing speed is different from bag specifications, stirring volumes, solutions and brand of mixers. Please confirm the mixing speed and efficiency according to the actual situation.
品質管理
- ISO 9001:2015 品質管理システム
- ISO Class 4.8/7/8 基準のクリーンルームで製造
- 100% リークテスト
- ADCF 原材料、FDA 21 CFR Part 177-182 (間接食品添加物) に適合
- USP <87> Class VI, Biological Reactivity Test, In Vitroに適合
- USP <88> Class VI, Biological Test, In Vivoに適合
- USP <85> Limulus Amebocyte Lysate (LAL)の0.25EU/ml未満に適合
- USP<788> Particulate matter in large volume injectionに適合
- ISO 11137に準拠したガンマ線照射線量
ご注文情報
Cobetter Lifecube MP Single-use Mixing Bags
Cat. No.（RB Film） |
Volume | Inlet/Outlet Lines* | Sampling** | Powder Port |
| BMP50LT41Y1K | MP 50 L | Inlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Female Connector + ECS Male Plug Outlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Male Connector + ECS Female Plug |
Needlefree Swabable Valve | 4" TC(with Silicone Gasket, Blind Cap and Clamp) |
| BMP100T41Y1K | MP 100 L | |||
| BMP200T41Y1K | MP 200 L | |||
| BMP500T41H1K | MP 500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：150 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMP10XT41H1K | MP 1000 L | |||
| BMP15XT41H1K | MP 1500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：300 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMP20XT41H1K | MP 2000 L | |||
| BMP25XT41H1K | MP 2500 L | |||
| BMP30XT41H1K | MP 3000 L |
* Inlet/Outlet Lines: The size and length can be customized;
** Sampling Lines: 20 cm 1/4 "*7/16" Cobetter Lifemeta STT Pt-cured silicone tubing.
Cobetter Lifecube ML Single-use Mixing Bags
| Cat. No.（RB Film） | Volume | Inlet/Outlet Lines* | Sampling** | Powder Port |
| BML50LT41Y1K | ML 50 L | Inlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Female Connector + ECS Male Plug Outlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Male Connector + ECS Female Plug |
Needlefree Swabable Valve | 4" TC(with Silicone Gasket, Blind Cap and Clamp) |
| BML100T41Y1K | ML100 L | |||
| BML200T41Y1K | ML200 L | |||
| BML500T41H1K | ML500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：150 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BML10XT41H1K | ML1000 L |
* Inlet/Outlet Lines: The size and length can be customized;
** Sampling Lines: 20 cm 1/4 "*7/16" Cobetter Lifemeta STT Pt-cured silicone tubing.
Cobetter Lifecube MG Single-use Mixing Bags
| Cat. No.（RB Film） | Volume | Inlet/Outlet Lines* | Sampling** | Powder Port |
| BMG50LT41Y1K | MG 50 L | Inlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Female Connector + ECS Male Plug Outlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Male Connector + ECS Female Plug |
Needlefree Swabable Valve | 4" TC(with Silicone Gasket, Blind Cap and Clamp) |
| BMG100T41Y1K | MG 100 L | |||
| BMG200T41Y1K | MG 200 L | |||
| BMG500T41H1K | MG 500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：150 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMG10XT41H1K | MG 1000 L | |||
| BMG15XT41H1K | MG 1500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：300 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMG20XT41H1K | MG 2000 L | |||
| BMG25XT41H1K | MG 2500 L | |||
| BMG30XT41H1K | MG 3000 L |
* Inlet/Outlet Lines: The size and length can be customized;
** Sampling Lines: 20 cm 1/4 "*7/16" Cobetter Lifemeta STT Pt-cured silicone tubing.
Cobetter Lifecube MK Single-use Mixing Bags
| Cat. No. （RB Film） | Volume | Inlet/Outlet Lines* | Sampling** | Powder Port |
| BMK50LT41Y1K | MK 50 L | Inlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Female Connector + ECS Male Plug Outlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Male Connector + ECS Female Plug |
Needlefree Swabable Valve | 4" TC(with Silicone Gasket, Blind Cap and Clamp) |
| BMK100T41Y1K | MK 100 L | |||
| BMK200T41Y1K | MK 200 L | |||
| BMK500T41H1K | MK 500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：150 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMK10XT41H1K | MK 1000 L |
* Inlet/Outlet Lines: The size and length can be customized;
** Sampling Lines: 20 cm 1/4 "*7/16" Cobetter Lifemeta STT Pt-cured silicone tubing.
Cobetter Lifecube MKP Single-use Mixing Bags
| Cat. No.（RB Film） | Volume | Inlet/Outlet Lines* | Sampling** | Powder Port |
| BMKP100T41Y1K | MKP 100 L | Inlet：150 cm ⅜"* ⅝" STT Pt-curedSilicone Tubing + ECS Female Connector + ECS Male Plug Outlet：150 cm ⅜"* ⅝" STT Pt-curedSilicone Tubing + ECS Male Connector + ECS Female Plug |
Needlefree Swabable Valve | 4" TC(with Silicone Gasket, Blind Cap and Clamp) |
| BMKP200T41Y1K | MKP 200 L | |||
| BMKP500T41H1K | MKP 500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：150 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMKP10XT41H1K | MKP 1000 L | |||
| BMKP15XT41H1K | MKP 1500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：300 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMKP20XT41H1K | MKP 2000 L | |||
| BMKP25XT41H1K | MKP 2500 L | |||
| BMKP30XT41H1K | MKP 3000 L |
** Sampling Lines: 20 cm 1/4 "*7/16" Cobetter Lifemeta STT Pt-cured silicone tubing.
Cobetter Lifecube MS Single-use Mixing Bags
| Cat. No. （RB Film） | Volume | Inlet/Outlet Lines* | Sampling** | Powder Port |
| BMS50LT41Y1K | MS 50 L | Inlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Female Connector + ECS Male Plug Outlet：150 cm ⅜"* ⅝" STT Pt-cured Silicone Tubing + ECS Male Connector + ECS Female Plug |
Needlefree Swabable Valve | 4" TC(with Silicone Gasket, Blind Cap and Clamp) |
| BMS100T41Y1K | MS 100 L | |||
| BMS200T41Y1K | MS 200 L | |||
| BMS500T41H1K | MS 500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：150 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMS10XT41H1K | MS 1000 L | |||
| BMS15XT41H1K | MS 1500 L | Inlet：150 cm½" * ¾" STT Pt-cured Silicone Tubing + ECM Female Connector + ECM Male Plug Outlet：300 cm ½" * ¾" STT Pt-cured Silicone Tubing + ECM Male Connector + ECM Female Plug |
||
| BMS20XT41H1K | MS 2000 L | |||
| BMS25XT41H1K | MS 2500 L | |||
| BMS30XT41H1K | MS 3000 L |
* Inlet/Outlet Lines: The size and length can be customized;
** Sampling Lines: 20 cm 1/4 "*7/16" Cobetter Lifemeta STT Pt-cured silicone tubing.
